Discontinued
Lightware’s 8 meters-long USB-C extender Active Optical Cables (AOC) bring literally more flexibility and durability into AV projects, being compatible with all major operating systems and offering SuperSpeed data rates as well as Ultra HD video transmission.
4K HDBaseT™ Input Board with Analog Audio and PoE
Featuring eight HDBaseT™ input ports, this board is compatible with the full range of Lightware TPS extenders and HDBaseT™ compliant third party transmitters.
4K HDMI Output Board with Analog Audio Add-on
25G-8HDMI2-A3-OB provides fully transparent HDMI 1.4 connectivity to the latest high-end digital sinks including the Audio Return Channel and 3D functions between the endpoints.
4K HDMI Input Board with Analog Audio Add-on
25G-8HDMI2-A3-IB provides fully transparent HDMI 1.4 connectivity to the latest high-end digital sources including 3D functions between the endpoints.
Lightware’s 10 meters-long USB-C extender Active Optical Cables (AOC) bring literally more flexibility and durability into AV projects, being compatible with all major operating systems and offering SuperSpeed data rates as well as Ultra HD video transmission.
Universal Matrix Switcher with HDMI 2.0 and USB-C connectivity
Lightware’s universal matrix switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet features.
Universal Switcher with HDMI 2.0 and USB-C connectivity
Lightware’s universal switcher that exploits the USB-C connectivity for a simplified transmission of 4K video, audio, control signals and power providing meeting participants with easy host switching, utilizing data speeds of up to 5 Gbps under the USB 3.1 Gen1 providing video resolution capabilities up to 4K@60Hz at 4:4:4 as well as comprehensive and secure Ethernet
Universal Matrix Switcher with HDMI 2.0 connectivity and USB 3.1 Gen1 features
Lightware’s universal matrix switcher allowing users to switch between hosts and BYOD devices using a combination of HDMI 2.0 and USB 3.1 Gen1 connections, with video and audio signals up to 4k@60Hz 4:4:4 and data speeds up to 5 Gbps.
Two Output Dual-Link DVI Distribution Amplifier
DA2DVI‑DL is a single input / 2 output multifunctional Dual‑ Link DVI distribution amplifier with built‑in EDID Management, allowing to create, edit and emulate EDIDs. It distributes signals at the highest resolutions required for military, medical, automotive design and active 3D (60 + 60 Hz) applications.
HDMI 2.0 Input Board
HDMI 2.0 Output Board
HDMI 2.0 Multimode Fiber Output Board
HDMI 2.0 Multimode Fiber Input Board
HDBaseT™ Compatible HD Video Scaler and Receiver with Local HDMI Input
HDMI-TPS-RX120-HDSR is a TPS (HDBaseTTM) receiver with a local HDMI input and a built-in HD video scaler. Conversion between common formats and frame rates are supported. One common resolution can be used across the whole system configuration, independent of the requirements of the connected displays, which improves general performance. The connected display receives continuous HDMI signal from the scaler when a switching in the input signal occurs.
HDCP Compliant Pro Series 8x8 HDMI Matrix
MX8x8HDMI‑Pro supports DVI 1.0, HDCP 1.2 and HDMI 1.3 deep color standards. This high performance router has eight HDMI inputs and eight HDMI outputs.

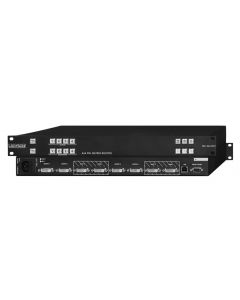

DVI Matrix Switcher
The MX16x16DVI‑Plus cost‑effective matrix switcher range from 16 input 16 output. The Plus series switchers are based on the Slim matrices with the added benefits of the integrated power supply insuring reliable performance in the most harshest environments. The 7 inch depth, 4 RU high body and low noise fan design makes it ideal for many space and noise sensitive applications.
TPS and HDMI Combo Input Board with Digital Audio
MX-4TPS2-4HDMI-IB-S is a combination input board with four HDMI and four HDBaseTTM single CAT inputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseTTM and 170m distance in Long reach mode.

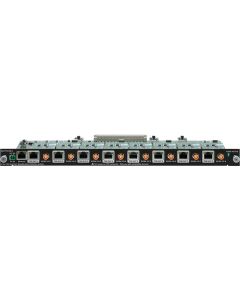

TPS Output Board with Digital Audio and PoE Option
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode.
TPS (HDBaseT™) extender for DVI with local monitor out
The DVI-HDCP-TPS-TX220 is a flagship model in the Lightware TPS (HDBaseT™ Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT cable. The extender was designed to handle DVI, HDMI 1.4 digital video signals with HDCP and analog stereo audio from local inputs, or HDMI Embedded Audio up to eight channel PCM or HBR audio.
TPS Input Board with Digital Audio and PoE
MX‑TPS2‑IB is an eight channel HDMI and single CAT HDBaseTTM Input Board providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to a 100m in HDBaseTTM and a 170m distance in Long Reach Mode.
TPS (HDBaseT™) extender for DVI with local monitor out
The DVI-HDCP-TPS-TX220 is a flagship model in the Lightware TPS (HDBaseT™ Transmitter) product family. The device can transmit universal video, audio and control up to a 170 meter distance over a single CAT cable. The extender was designed to handle DVI, HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI Embedded Audio up to eight channel PCM or HBR audio.
MX HDMI Output Board
MX‑HDMI‑3D‑OB-S provides eight channel HDMI 1.4 extension with 4K resolution, 3D formats and local audio support.

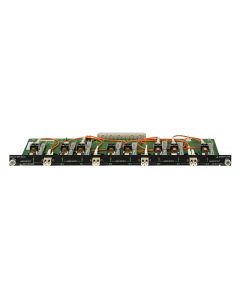

Fiber optical Output board with Pixel Accurate Reclocking
MX‑DVI‑OPT‑OB‑R Output Board provides extremely long, 2500m extension and reclocking for DVI‑D signals over Multimode fiber on eight channels.
MX HDMI Optical Output Board with Reclocking
MX‑HDMI‑3D‑OB‑R is an eight channel Multimode optical output board, providing HDMI 1.4, audio and RS‑232 extension over a single Multimode fiber up to a range of 2500m.
TPS and HDMI Combo Input Board with Digital Audio and PoE
MX-4TPS2-4HDMI-IB-SP is a combination input board with four HDMI and four HDBaseTTM single CAT inputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseTTM and 170m distance in Long reach mode.
TPS and HDMI Combo Output Board with Digital Audio
MX-4TPS2-4HDMI-OB is a combination output board with four HDMI and four HDBaseT™ single CAT outputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseT™ and 170m distance in Long reach mode.
TPS and HDMI Combo Output Board with Digital Audio and PoE
MX-4TPS2-4HDMI-OB is a combination output board with four HDMI and four HDBaseT™ single CAT outputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseT™ and 170m distance in Long reach mode.
TPS Output Board with PoE Option
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode.
TPS Input Board with PoE Option
MX‑TPS2‑IB is an eight channel HDMI and single CAT HDBaseTTM Input Board providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to a 100m in HDBaseT and a 170m distance in Long Reach Mode.
TPS Output Board with PoE Option
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode.
TPS Input Board
MX‑TPS2‑IB is an eight channel HDMI and single CAT HDBaseTTM Input Board providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to a 100m in HDBaseT and a 170m distance in Long Reach Mode.
TPS Output Board with PoE Option
MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode.
TPS Input Board with PoE Option
MX‑TPS2‑IB is an eight channel HDMI and single CAT HDBaseTTM Input Board providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to a 100m in HDBaseT and a 170m distance in Long Reach Mode.
Single Fiber HDMI 1.3 Optical Extenders with Bi-directional RS-232
HDMI-OPT-series are optcal extenders transfering HDMI 1.3 with embedded audio, DVI 1.0, HDCP and bi-directional RS-232 signals over one multimode fiber to a range of up to 2500 meters.
Remote control panel for Lightware matrix switchers
Lightware MX‑RCP16 is remote control panels for controlling Lightware matrix routers remotely through LAN connection. The RCPs can be used just like the front panel buttons on matrix routers to make crosspoint changes, or they can be programmed for special functions like salvo mode or universal device control.
SD/HD/3G SDI Distribution Amplifier with 4 Outputs
DA4-3GSDI is a multirate one Input/four Output serial distribution amplifier.
Remote control panel for Lightware matrix switchers
Lightware MX‑RCP32 is remote control panel for controlling Lightware matrix routers remotely through LAN connection. The RCPs can be used just like the front panel buttons on matrix routers to make crosspoint changes, or they can be programmed for special functions like salvo mode or universal device control.
DisplayPort 1.2 Input Board
Floorbox (FP) TPS Extender for Single CATx Cable with PoE
FP-HDMI-TPS-RX97 series twisted pair HDBaseT™ extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable.
WP/FP-HDMI-TPS-TX/RX97 series twisted pair HDBaseTTM extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable.
Wallplate (WP) TPS extender for single CATx cable with PoE
WP-HDMI-TPS-TX97 series twisted pair HDBaseTTM extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable.
Wallplate (WP) TPS extender for single CATx cable with PoE
WP-HDMI-TPS-RX97 series twisted pair HDBaseTTM extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable.
25G 4K DVI-D Single-Link Input Board
25G‑8DVID2‑IB provides fully transparent HDMI 1.4 connectivity to the latest high‑end digital sources including 3D between the endpoints.
Consumer Electronics Control layer
Consumer Electronics Control (CEC) is also commonly used for remote control based applications like IR. Third party control systems can also send CEC control commands to endpoints turning them on and off or switching their inputs. CEC was introduced by HDMI standard, and is a bi‑directional CEC channel.
We can link sources and destinations via CEC communication while the router itself can initiate its own commands for example: „SYSTEM ON” or „STANDBY” commands.

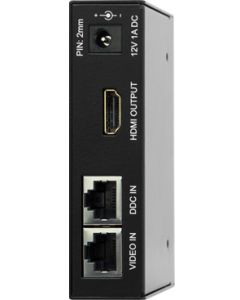

CAT5, CAT6 and CAT7 Active Twisted Pair Wall Plate extenders
WP‑DVI‑HDCP‑TP and WP‑HDMI‑TP 50 transmit HDMI or DVI‑D signals over two CATx cables. They fully support HDMI 1.3a signals with or without HDCP encryption.
Full 4K TPS (HDBaseTTM) HDMI 2.0 Extenders with RS-232, IR, Return Audio and Ethernet
HDMI20-TPSPro-TX90AP and HDMI20-TPSPro-RX90A are a transmitter and receiver pair providing extension of 4K 60Hz 4:4:4 video with embedded audio to a range of up to 100 m over a single CATx cable.
4K HDMI Input Board with Analog Audio and KVM
25G-8HDMI2-A3-IB provides fully transparent HDMI 1.4 connectivity to the latest high-end digital sources including Audio Return Channel and 3D functions between the endpoints.
